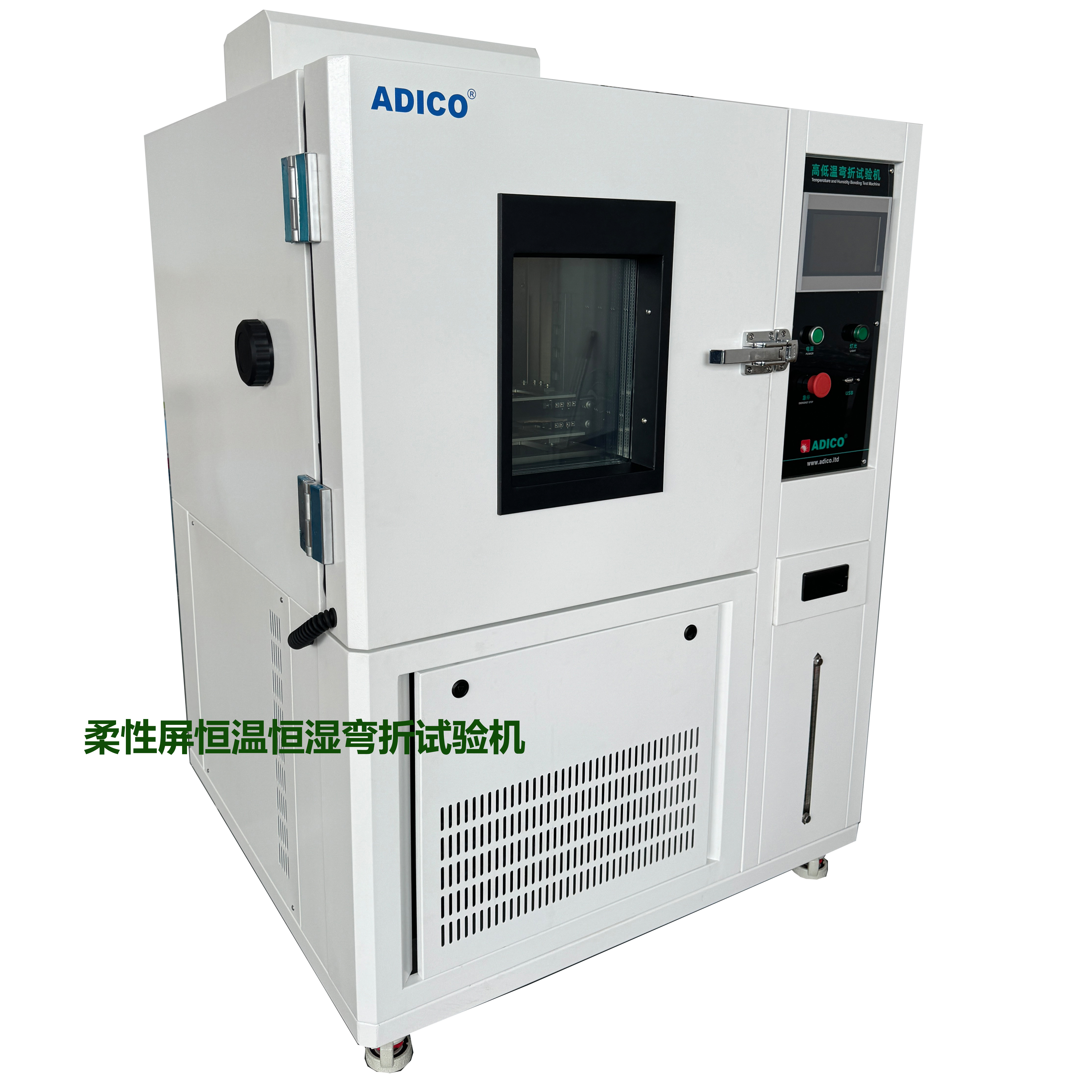

恒温恒湿弯折试验机又名高低温湿热材料弯折试验机，材料耐折强度测定仪、材料寿命疲劳试验机、材料柔性测试设备，它是一种用于测试柔性屏及相关柔性材料在不同温度环境下弯折性能和可靠性的专业设备。广泛用于FFC、FPC、TP、柔性线路板、柔性膜、柔性屏、石墨烯、柔性板、UTG材料等柔性材料翻折测试（耐弯折导通性能测试）。柔性材料高低温耐折叠寿命试验机采用触摸屏与 PLC 通讯设置且显示，在一定圆棒、次数、速度、角度反复翻折测试。可根据试验要求设定试样纵横向、张力大小、测试速度、折叠次数。

The constant temperature and humidity bending tester, also known as the high-low temperature humidity material bending tester, material bending strength tester, material fatigue life tester, or flexible material testing equipment, is a specialized device used to evaluate the bending performance and reliability of flexible screens and related materials under various temperature conditions. It is widely employed for the folding endurance testing (bending conduction performance testing) of flexible materials such as FFC, FPC, TP, flexible circuit boards, flexible films, flexible screens, graphene, flexible plates, UTG materials, and other flexible materials. The high-low temperature bending endurance tester for flexible materials features a touchscreen interface for communication and display with PLC. It conducts repeated bending tests on specimens using a round rod, with adjustable cycles, speed, and angle. Parameters such as specimen orientation (longitudinal/transverse), tension magnitude, testing speed, and folding cycles can be set according to test requirements.

性能技术参数：（指气冷式在室温25℃,空载时）

• 1.温度范围:－60℃～150℃
• 2.温度波动度:±0.5℃
• 3.温度均匀度:±2℃
• 4.温度最低极限:－60℃
• 5.升温时间:由常温升至150℃约35分钟（非线性）
• 6.降温时间:由常温降至－60℃约70分钟（非线性）
• 7、湿度范围:20%～98%R.H
• 8、湿度波动度:±1.5%R.H
• 9.湿度均匀度:±2.0%R.H.
• Performance and technical parameters: (referring to air-cooled type at room temperature of 25 ℃, unloaded)
• 1. Temperature range: -60 ℃~150 ℃
• 2. Temperature fluctuation: ± 0.5 ℃
• 3. Temperature uniformity: ± 2 ℃
• 4. Minimum temperature limit: -60 ℃
• 5. Heating time: Approximately 35 minutes from room temperature to 150 ℃ (non-linear)
• 6. Cooling time: from room temperature to -60 ℃ for about 70 minutes (non-linear)
• 7. Humidity range: 20% to 98% R.H
• 8. Humidity fluctuation: ± 1.5% R.H
• 9. Humidity uniformity: ± 2.0% R.H
